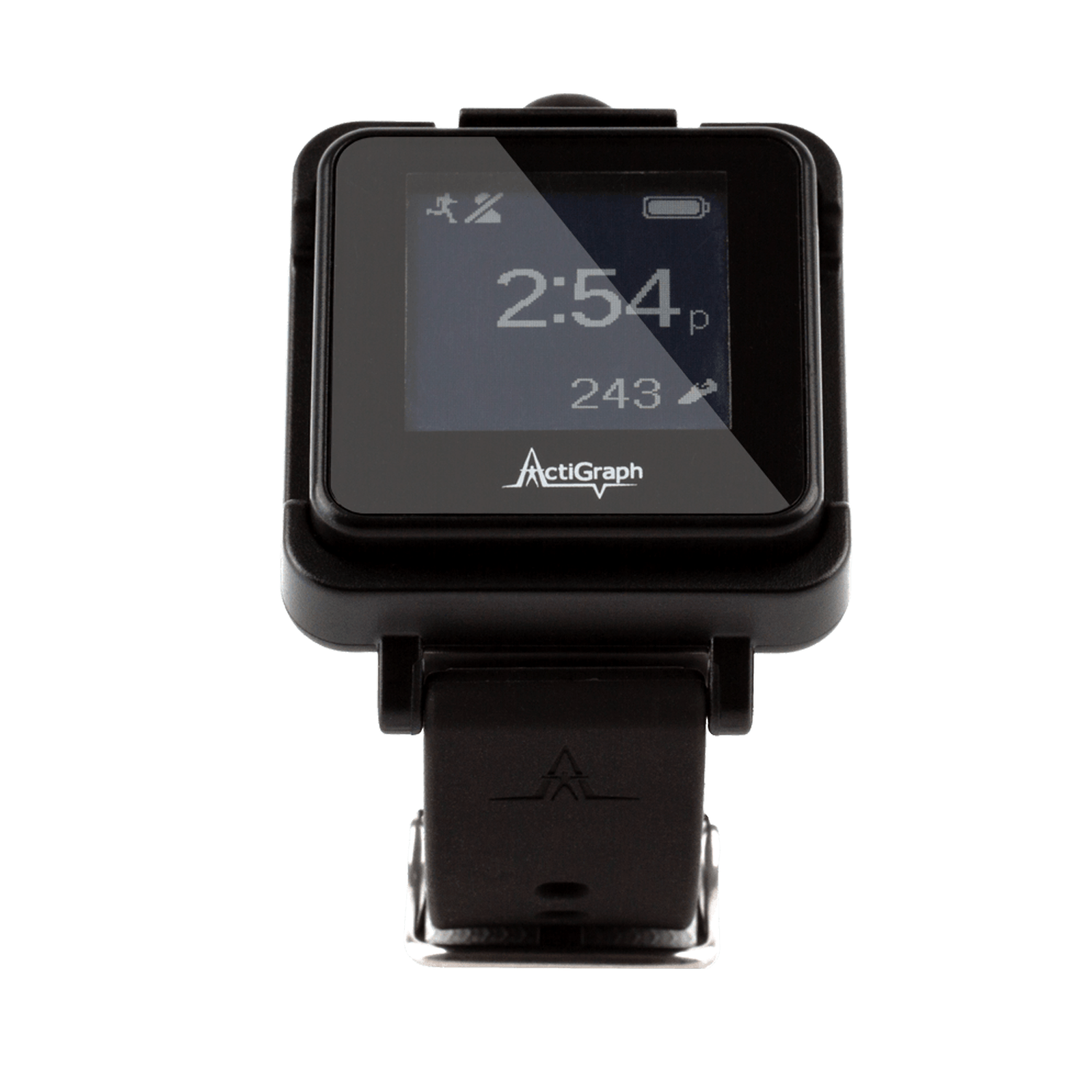

Top-of-the-range activity monitor
The ActiGraph GT9X Link captures and records high resolution human activity information using a solid state 3-axis MEMS accelerometer and our proprietary filtering algorithm. The GT9X Link is our most sophisticated activity monitor and represents a significant upgrade from previous models. Building on our validated physical activity and sleep measurement platform, it has been redesigned with a rich set of new features along with multiple new channels of sensor data captured by gyroscope, magnetometer and secondary accelerometer. High resolution LCD screen, Bluetooth® for wireless data capture and uploads to ActiGraph’s mobile applications makes GTX9 Link the most versatile and user-friendly activity monitor in our range. It is fully backward compatible with previous device models to ensure data comparability for our existing clients.
Dimensions: 3.5 x 3.5 x 1 cm
Weight: 14 grams
Sample rate: 30-100 Hertz
Battery life: 14 days*
Memory: 4GB
Data storage: 180 days
Dynamic range (primary accelerometer): +/- 8G
IMU sample rate: 100 Hertz
Gyroscope dynamic range: +/- 2000 deg/sec
Dynamic range (secondary accelerometer): +/- 16G
Magnetometer dynamic range: +/- 4800 micro-Tesla
Communication: USB, Bluetooth® LE
Water resistance: IP27 1 meter, 30 min.
Wear location: Wrist, waist, ankle, thigh
*Wireless disabled, 30 Hz sample rate, IMU disabled, sleep mode.

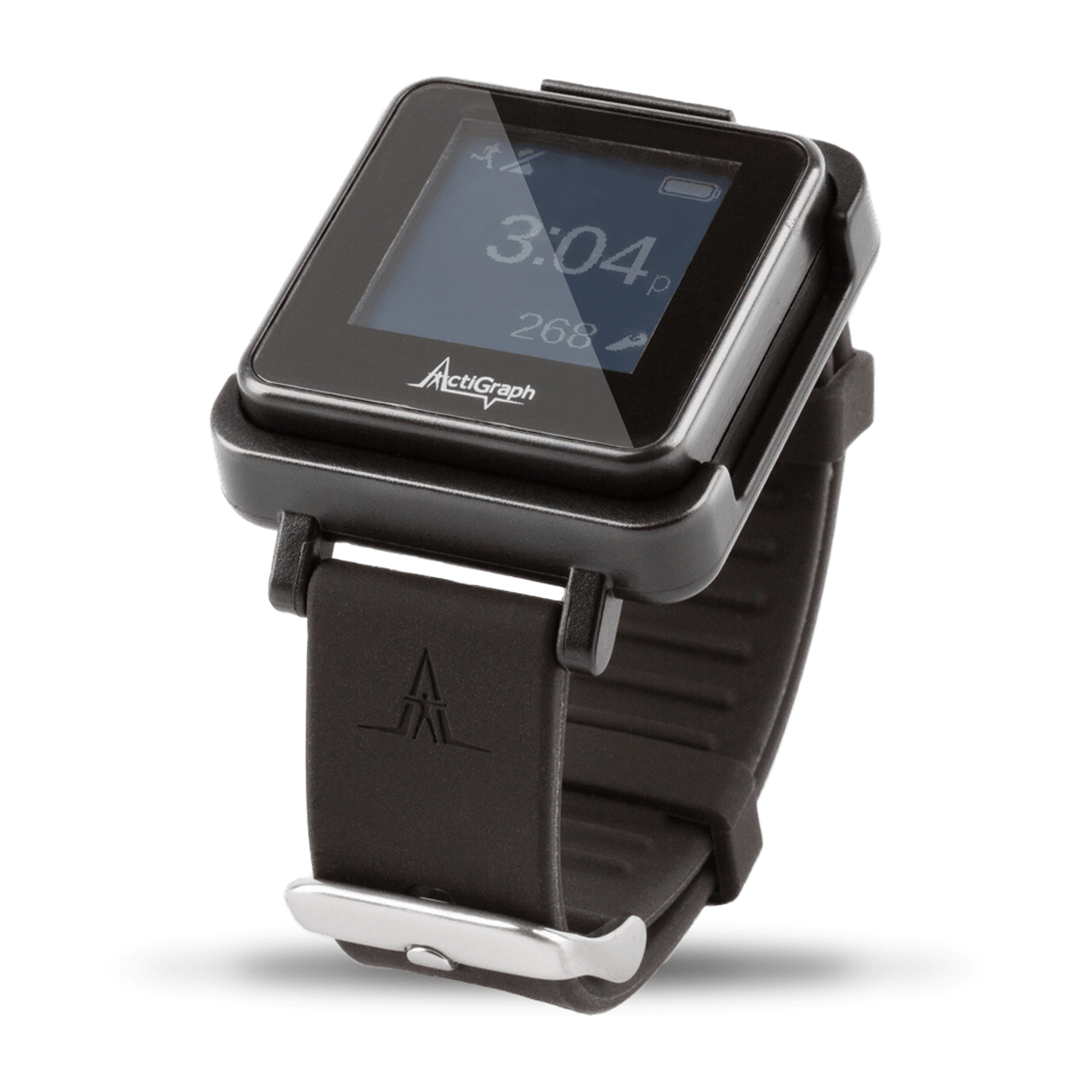

The redesigned ActiGraph GT9X Link features ActiGraph’s validated 3-axis accelerometer and data filtering technology with a sleek, low-profile case and high-resolution liquid crystal display (LCD) window for optional real-time subject feedback. The Bluetooth® Smart ActiGraph GT9X Link includes a gyroscope, magnetometer, and secondary accelerometer to deliver valuable information about movement, rotation, and body position.
Programmable Display
The ActiGraph GT9X Link features a programmable LCD window that can be configured to display date and time and/or provide real-time activity feedback such as steps and kcals, or it can be completely disabled. An integrated IMU containing a gyroscope, magnetometer, and secondary 3-axis accelerometer sensors provides raw position and rotational data for a variety of advanced applications, including inclination, gait analysis, and fall detection*. An advanced wear time sensor on the back of the device uses capacitive touch technology to automatically detect when a wrist worn device has been removed for simplified compliance monitoring and data cleaning.
Bluetooth® Smart
The ActiGraph GT9X Link is powered by Bluetooth® Smart technology and offers a variety of wireless features, including heart rate monitoring, proximity detection, and communication with ActiGraph’s suite of mobile applications for iOs and Android devices.
* ActiGraph products are not intended to diagnose, treat, cure, or prevent any disease.
The ActiGraph GT9X Link captures and records high resolution raw acceleration data, which is converted into a variety of objective activity and sleep measures using publicly available algorithms developed and validated by members of the academic research community. Available measures include:
*Requires compatible Bluetooth® Polar H7 or Polar H10 heart rate monitors
